| MACHINE MODEL | ADCH-860 |
| Usable Chamber Width (Distance Between Seal bars)(W1/W2) |
W1 – 720 W2 – 322 |
| Usable Chamber Height (H) | 195 |
| Seal bar Length (L) | 860 |
| Number of Seal Bars | 2/4 |
| Seal Width | 6/8 |
| Machine Dimension (LxWxH) | 2058 X 925 X 1070 |
| Machine Weight | 550 Kg |
| Voltage | 440V – 3PH – 50Hz |
| Electric Power Supply | 5 KW |
| Cycle Time | 20 – 25 Seconds |
Standard Features

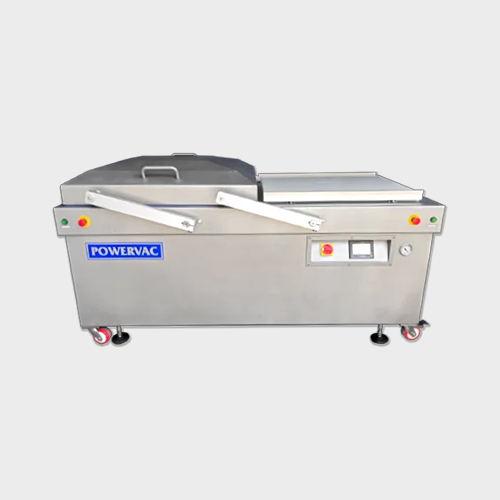

Horizontal dual chamber type model to save loading- unloading time.
Mobile with 4 nos. trolley wheels. wheels will be lockable.
Design suitable for high productivity up to 10kg pack with high speed vacuum pump.
Heavy duty one piece cast aluminum top.
Mitsubishi (Japan) PLC based control panel with 4-line LCD display.
German make vacuum pump
Adjustable vacuum time sealing time, etc. long lasting heating elements for accurate sealing result. stainless steel body, no sharp edges, use cast aluminum &other nonferrous materials, to safe rust issue and easy cleaning.
Optional Features
Insert gas flushing unit.
Vacuum & gas control by sensor for accurate level.
BUSCH (Germany) Vacuum Pump.
Mould and Formers as per require pack size.
